Flexible Jumper Cables - High-Performance Connection Solutions
1. Application Scope
Customizable Pin Count
Easy Installation
Board-to-Board Connection
Bended Pins for Secure Connection
These pins of flexible jumper cable were bended at both ends for tighter insertion into PCB holes, preventing easy fall-out during soldering.
(Click the left picture to enlarge view)

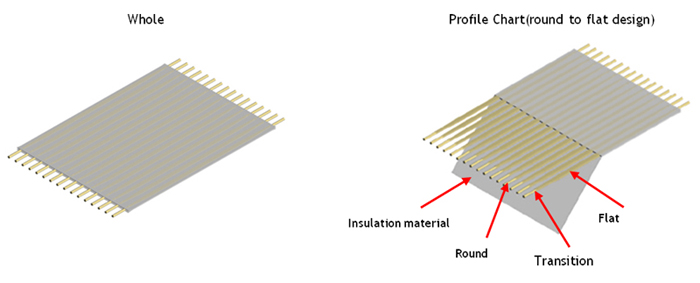

This flexible jumper cable is used to connect between board to board. It may be repeatedly flexed without failure. Round-to-flat conductor design and one-piece construction give vibration-proof reliability and longer life than conventional wiring systems. It has been widely used in electrical appliances, telecommunications systems, industrial electronics, electrical equipment, military, and aerospace applications.
2. Design Features (Assembly Picture)
Flexible Jumper Cable
The two solder ends have been strengthened, not easy to fracture
Conventional Jumper Cable
Easily fracture and bend at the two solder ends
3. The Specification of Flexible Jumper Cable
3.1 Pitch: 1.27mm, 2.0mm, 2.54mm, 3.50mm (For other Pitch, can be customized)
3.2 Number of conductor: 1 to 80 pins (1.27mm), 1 to 50 pins (2.00mm), 1 to 40 pins (2.54mm), 1 to 10 pins (3.50mm)
3.3 Insulation material: Polyester, Nomex®, Polyimide, PEN (Polyethylene Naphthalate)
3.4 Conductor material: Copper wire (Bare, Tin plated, nickel plated or Gold plated)
4. Product Characteristic
Note: these data are based on samples of 2.54mm pitch
| Parameter | Polyester (PET) | PEN | Nomex® (Aramid) | Kapton® (Polyimide) |
|---|---|---|---|---|
| Insulation material | Polyester (PET) | PEN | Nomex® (Aramid) | Kapton® (Polyimide) |
| Pitch | 2.54mm | 2.54mm | 2.54mm | 2.54mm |
| Wire Gauge | 24AWG | 24AWG | 24AWG | 24AWG |
| UL Flame Rating | VW-1 | VW-1 | VW-1 | VW-1 |
| Insulation Resistance at DC500V | 1×10¹² Ω | No test data | 2×10¹² Ω | 2×10¹² Ω |
| Capacitance (picofarad/foot) | 10.2pF/ft | No test data | 8.9pF/ft | 9.1pF/ft |
| Characteristic Impedance | 118 Ω | No test data | 123 Ω | 112 Ω |
| Temperature Rating - Standard | -40 to 105℃ | -40 to 125℃ | -40 to 125℃ | -40 to 150℃ |
| Temperature Rating - High Tg | N/A | -40 to 150℃ | -40 to 170℃ | -40 to 170℃ |
| Current Rating | 3A | 3A | 3A | 3A |
| Voltage Rating | 300V | 300V | 300V | 300V |
| Min. breakdown Voltage at 1 min. | 2000V | 2000V | 2000V | 2000V |
| Min. Bend Radius | 1mm | 1mm | 1mm | 1mm |
| Max. Soldering Temperature | 250℃/4 sec | 250℃/30 sec | 300℃/60 sec | 300℃/60 sec |
Technical Documentation
Download our detailed technology datasheet for complete specifications and technical details.
Download Technology Datasheet.pdf (1.613MB)5. The Characteristic of Finished Products
Polyester Jumper Cable
- Low cost
- Inherent dielectric strength
- Mechanical toughness
- Thermal stability
- Non-toxic/flame resistance
Nomex® Jumper Cable
- Inherent dielectric strength
- Mechanical toughness
- Thermal stability
- High soldering-temperature resistance (300℃ or higher)
- Chemical resistance/acid & alkali resistant
- Low-temperature resistant
- Moisture insensitivity
- Radiation resistance
- Non-toxic/flame resistance
Kapton® Jumper Cable
- Inherent dielectric strength
- Mechanical toughness
- Thermal stability
- High soldering-temperature resistance (300℃ or higher)
- Chemical resistance/acid & alkali resistant
- Extremely high & low temperature resistance
- Radiation resistance
- Non-toxic/flame resistance
PEN Jumper Cable
- High Electrical Reliability
- Robust Mechanical Performance
- High soldering-temperature resistance (250℃ or higher)
- Outstanding Chemical & Moisture Resistance
- Long-Term Durability
